Slotted Channels | Drainage for high optical demands

IDEAL FOR: design-sensitive applications, such as areas and facades with high optical demands especially in public and commercial areas.
%s



YOUR BENEFITS WITH SLOTTED CHANNELS

DIVERSE AND VARIABLE SOLUTIONS

= Design Flexibility
SHOW DETAILS

DIVERSE AND VARIABLE SOLUTIONS

  • channels and covers can be combined in various ways
  • slot covers made of galvanised or stainless steel
    (several stainless steel qualities)
  • individual slot covers with numerous neck heights for different load classes
  • a duo slotted cover with 2 x 6 mm slot width for class C 250
  • many channel systems, also with built-in fall, can be used
  • the channel bodies of the FASERFIX KS and RECYFIX PRO systems offer
  • ---> optimised water inlet into
    the channel
    ---> locking option if required
= Design Flexibility

SEPARATE END CAP FOR SLOTTED COVER

= Performance assured
SHOW DETAILS

SEPARATE END CAP FOR SLOTTED COVER

  • prevents bedding material
    from trickling into the channel
  • freely positionable if required
= Performance assured

HIGH COVER STABILITY

= Longevity | Performance assured
SHOW DETAILS

HIGH COVER STABILITY

  • constructive reinforcements under the cover and the thickness
  • of the material ensure a high quality ---> perfect balance between weight and stability
  • class E 600: material thickness
    4 mm
  • extremely dimensionally stable
    ---> slot on the surface resistant to mechanical influences
  • surface water is reliably drained
  •  the use of pure materials guarantees corrosion protection and the recyclability of the individual components
= Longevity | Performance assured


ATTRACTIVE DRAINAGE SOLUTION

= Uniqueness
SHOW DETAILS

ATTRACTIVE DRAINAGE SOLUTION

  • sophisticated drainage line
    blends harmoniously into
    the architecture of the site -
    slot widths 10 - 18 mm for classes A 15, C 250, D 400 and E 600
= Uniqueness

HIGH-LEVEL FUNCTIONALITY AND EASY INSTALLATION

= Time savings | Cost savings
SHOW DETAILS

HIGH-LEVEL FUNCTIONALITY AND EASY INSTALLATION

  • easy handling and installation
  • removable access covers ---> quick access to the channel run for maintenance and cleaning
  • integrated tongue and groove connection of the channels and covers - simple installation without complicated alignment
  • permanently straight slot without waviness or misalignment
= Time savings | Cost savings

CONNECTION POSSIBILITIES

= Design Flexibility
SHOW DETAILS

CONNECTION POSSIBILITIES

  • simple production of corner connections
  • access covers, can be positioned as required, fit on channels and trash boxes
  • access covers with pavable cover -all common surfaces and stone slabs possible

= Design Flexibility


UNIQUE CONNECTION TECHNOLOGY

= Performance assured | Time savings | Cost savings
SHOW DETAILS

UNIQUE CONNECTION TECHNOLOGY

  • interlocking connection at the joints of the cover(push connector)
    --> ideal connection for aligned installation
    ---> prevents bedding material from trickling into the channel
  • high stability through additional strengthening of the neck in the joint area
  • compensation of installation tolerances and material expansion with push connector
  • removable, e.g. to be able to attach end caps

= Performance assured | Time savings | Cost savings


THE SYSTEM IN DETAIL

explo
Asymmetrical covers made of galvanised or stainless steel. With integrated push connector for precise slot guidance on the surface.
End cap with outlet
Channels made of PP or fibre reinforced concrete in nominal sizes 100 and 150, with groove and tongue connection for exact installation
Trash box with pipe connection possibility, with fitting access cover
End cap with outlet

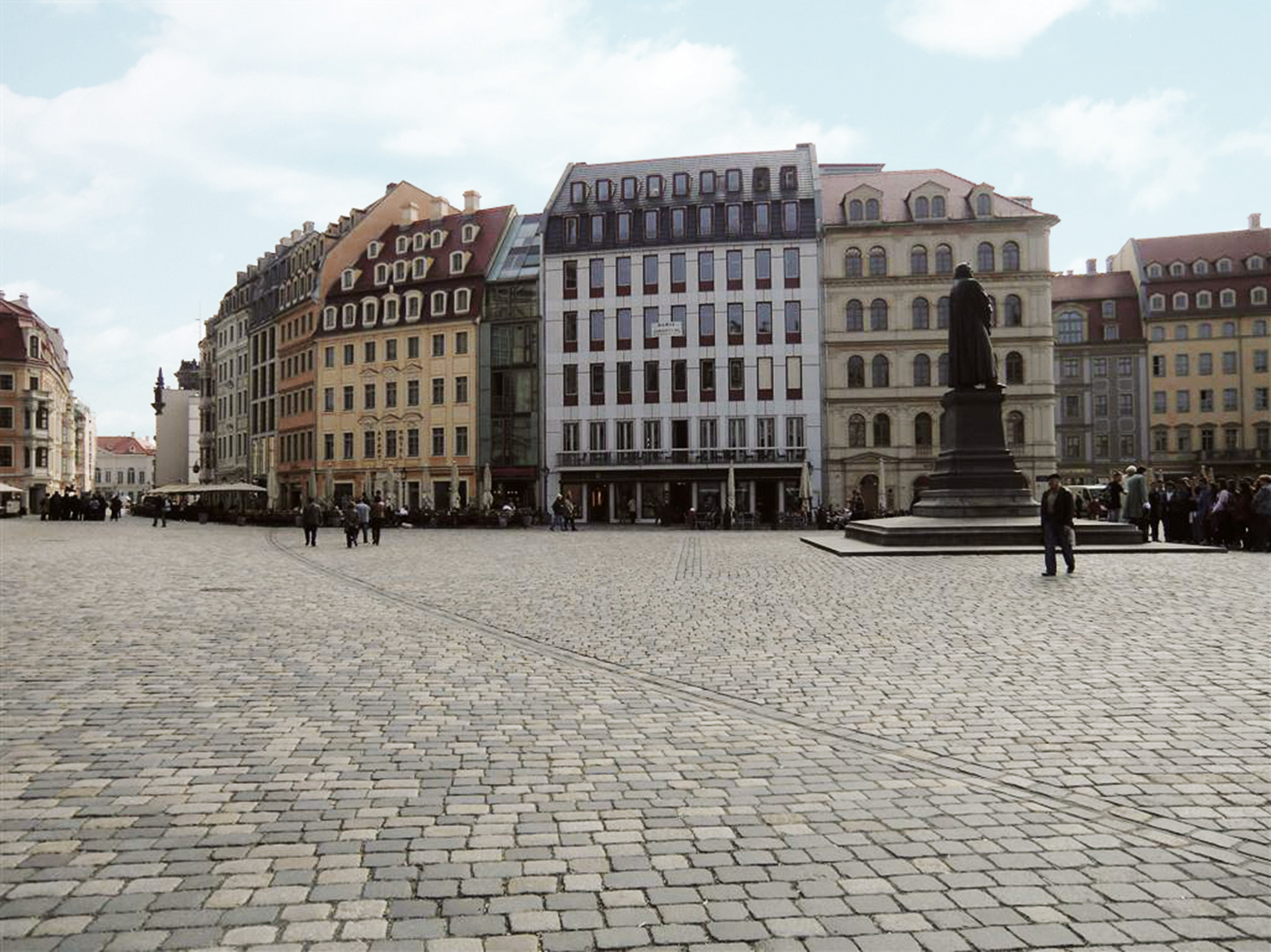

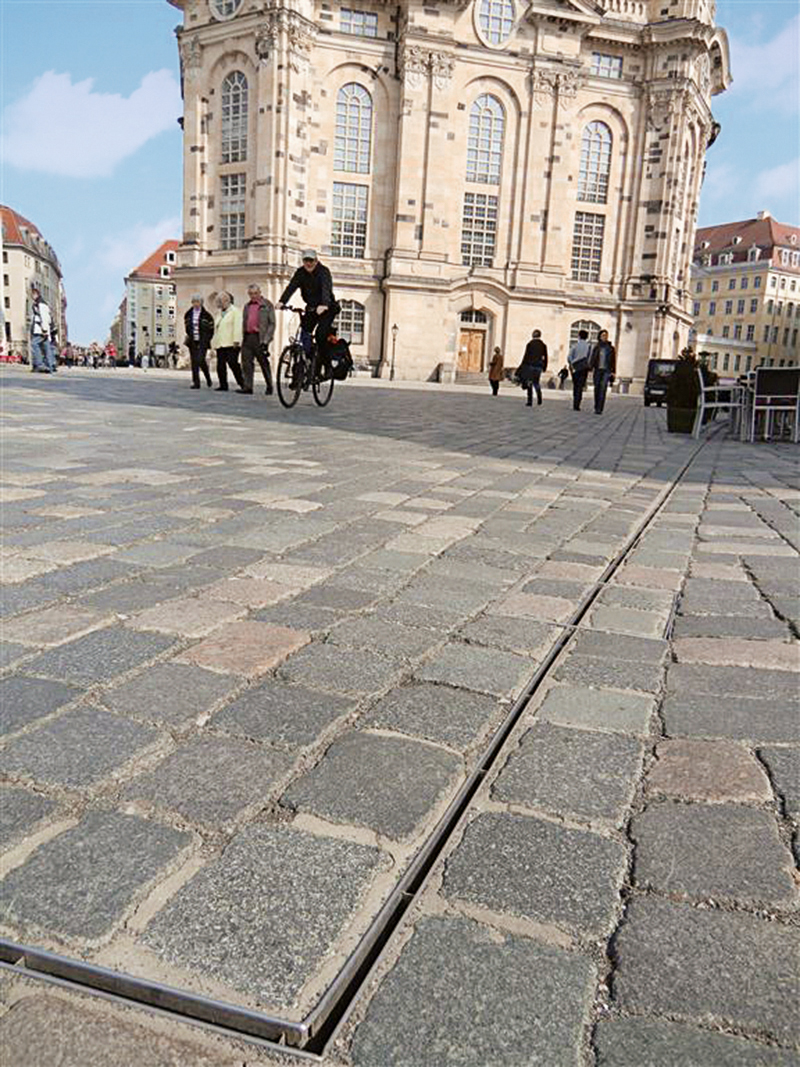

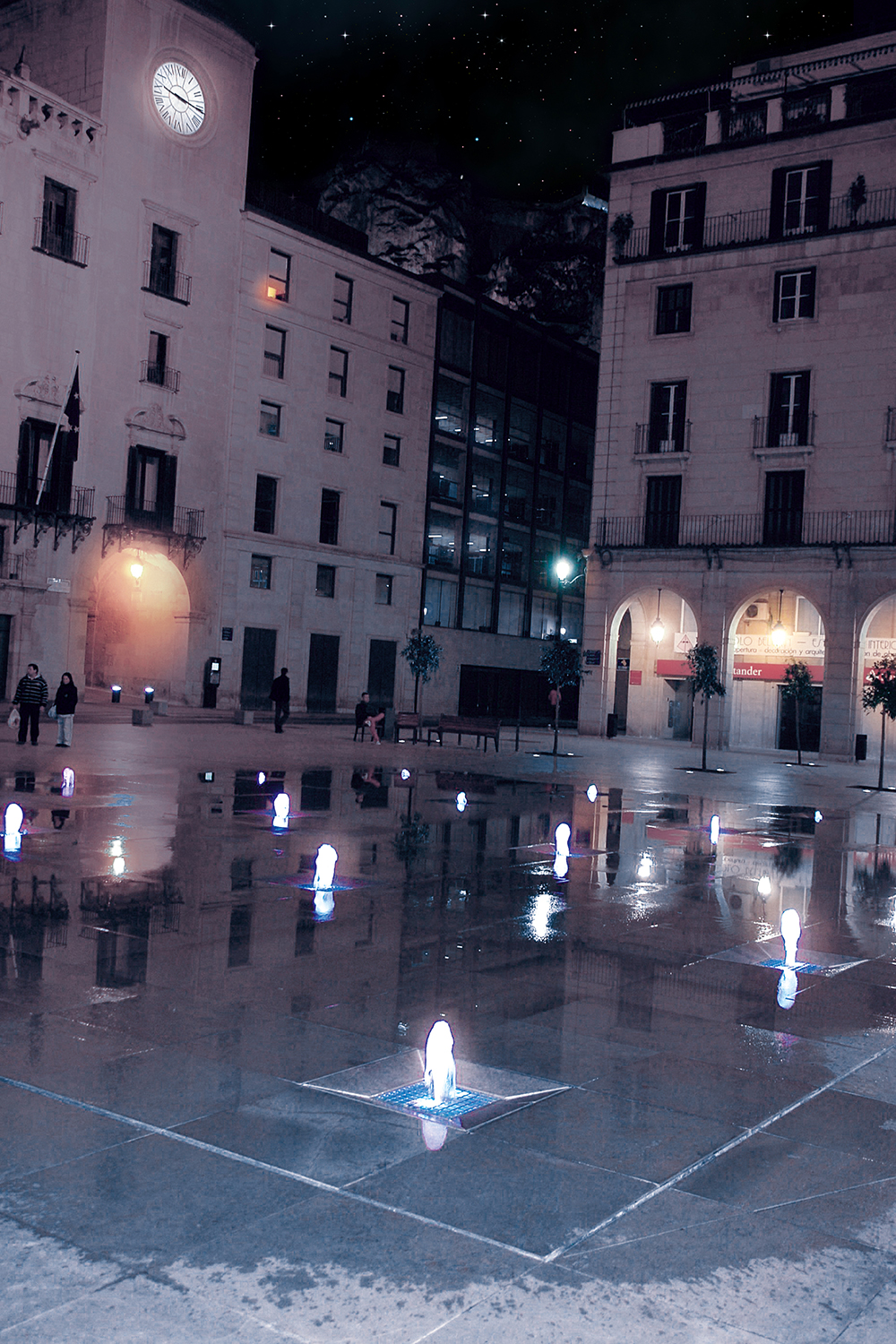

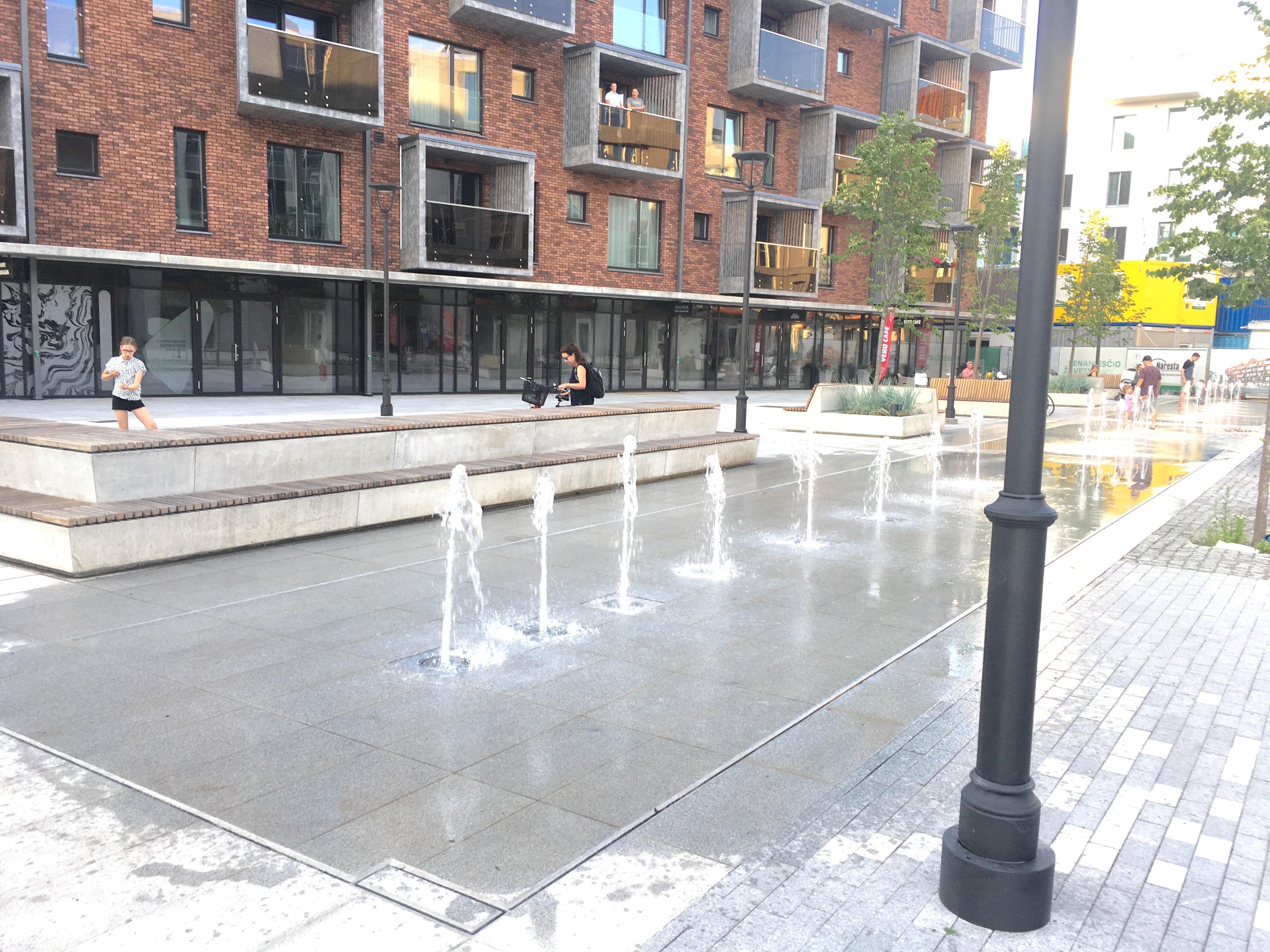

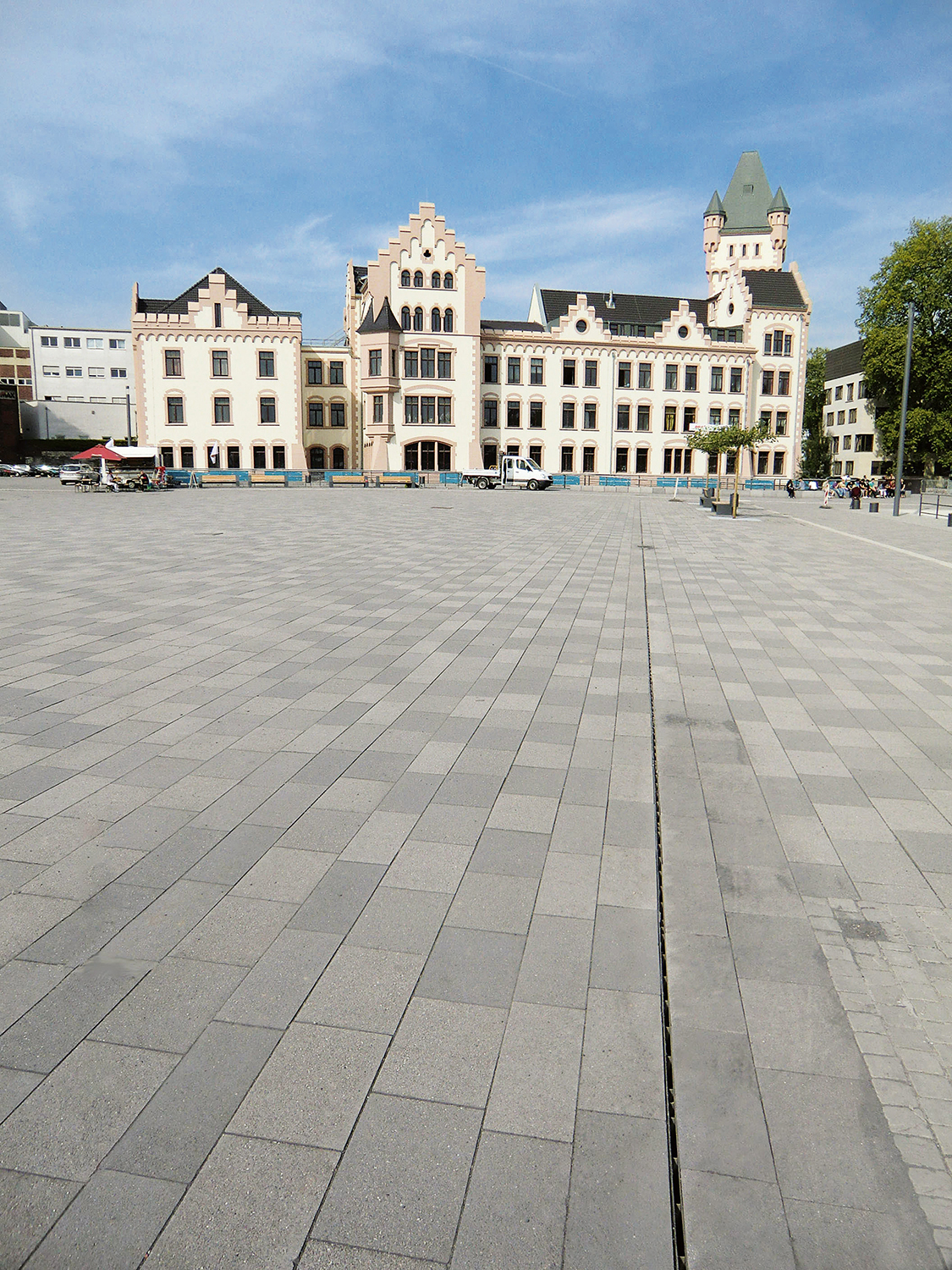

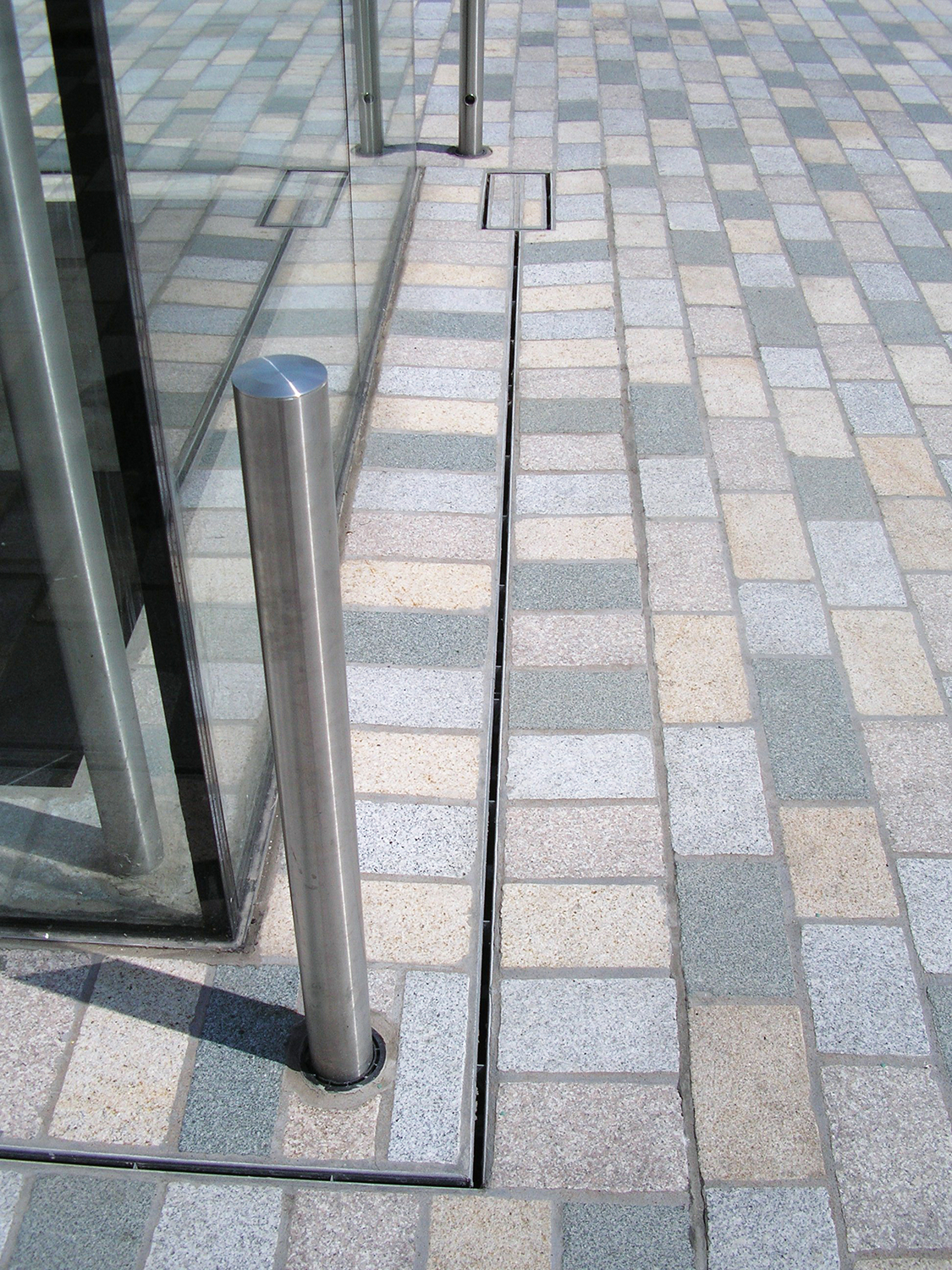

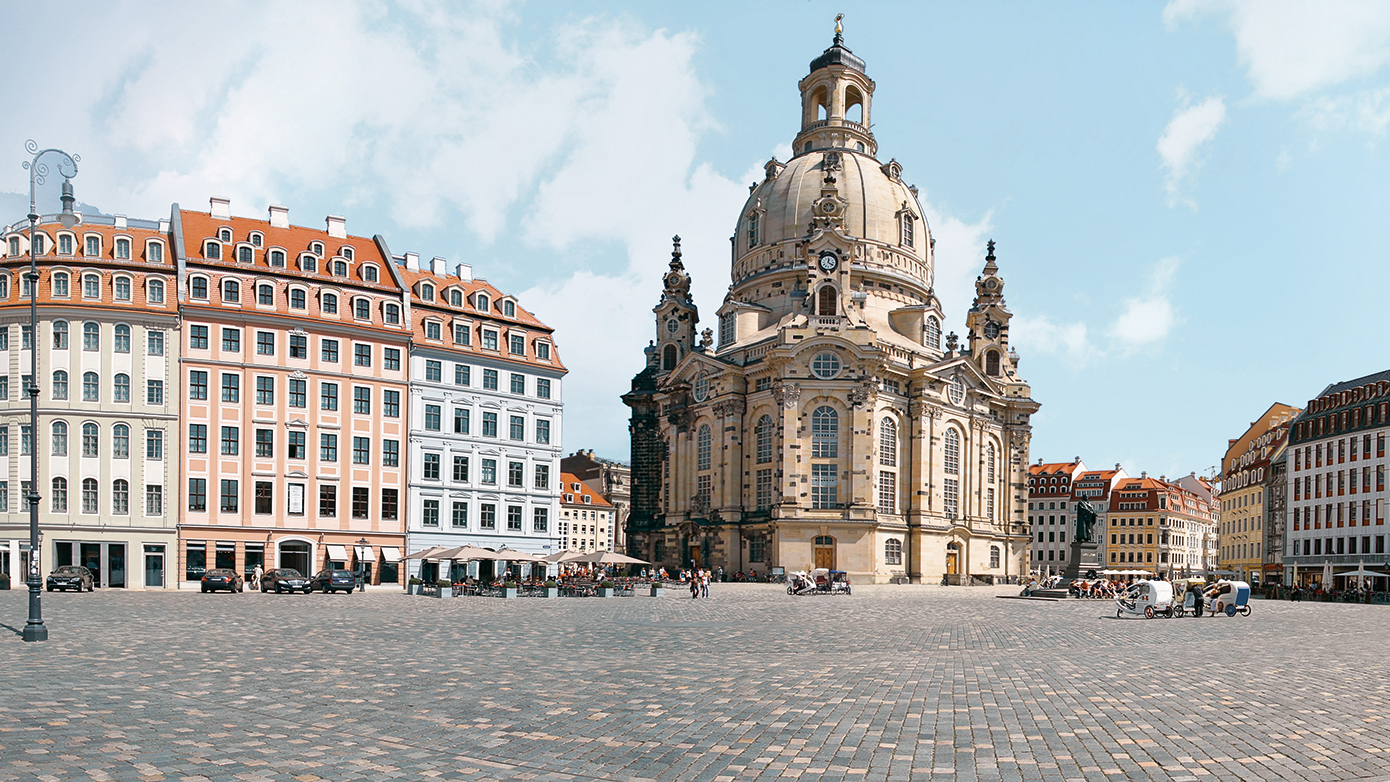

Slotted Channels Applications
