RECYFIX PLUS X drainage channel | car park & industry
IDEAL FOR: applications with higher traffic up to class 400, such as car parks, industrial estates and sewage plants.
YOUR BENEFITS WITH RECYFIX PLUS X
FRAME SYSTEM
- integrated galvanised or stainless steel frames
- protection against longitudinal and lateral movements of gratings
= Performance assured
PRE-ASSEMBLED READY FOR INSTALLATION
- channel and grating = one part
- no spare parts
- easy handling on stock and construction site
- cost-efficient transport
= Cost minimisation
HIGH RESISTANCE
- high resistance against frost, de-icing salt and UV rays
- withstands high temperature differences
- for climate ranges from - 50 °C to + 80 °C and more
= Performance assured
LOW WEIGHT ENSURES EASY HANDLING ON SITE
- much lighter than channels made of polymer / resin concrete
- easy transport and installation
= Cost savings
HIGH-GRADE MATERIAL
- RECYFIX®-stable and almost unbreakable
- elastic and especially robust material
- withstands high loads and temperature differences in daily use
- 100 % recycled composite body (and also 100 % recyclable) ---> 100 % environmentally friendly
- 0 % water absorption
- smooth inner surface for superior flow characteristics
- PP channel body can be cut, drilled and worked easily on site
= Performance assured
HIGH STABILITY
- proven structural design for superior resistance to dynamic forces and D 400 kN loads
- various ductile iron gratings in loading classes D 400 according to DIN EN 1433
- stable and durable drainage channel with protective edge
= Performance assured | Quality assured

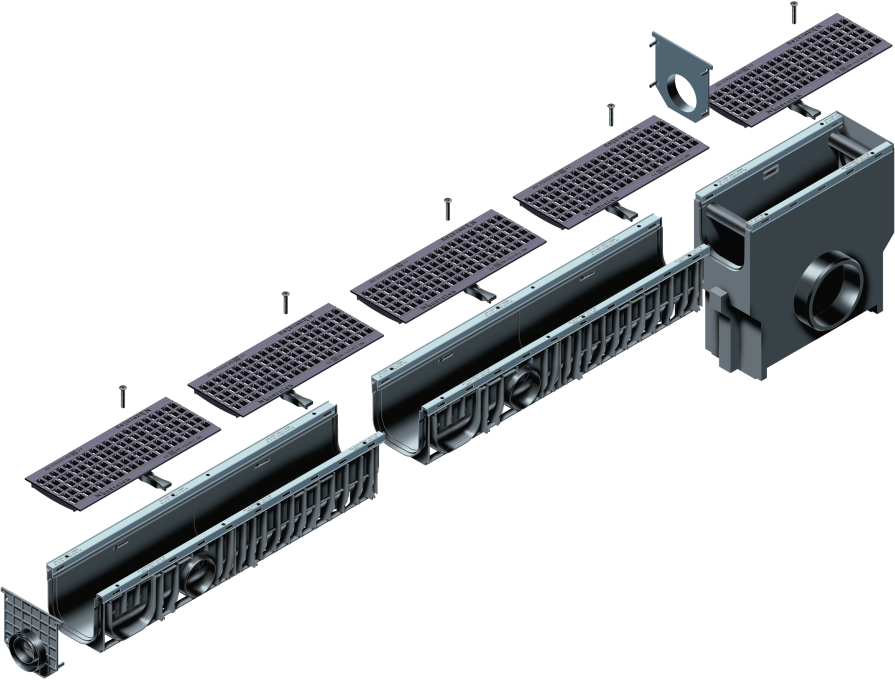

THE SYSTEM IN DETAIL
Channels made of PP with integrated steel frame, according to DIN V 19580 / EN 1433, CE-conform, with groove and tongue connection for exact installation
numerous grating options, for example GUGI-Ductile iron mesh gratings
Trash box with pipe connection possibility
End cap with outlet
End cap without outlet
