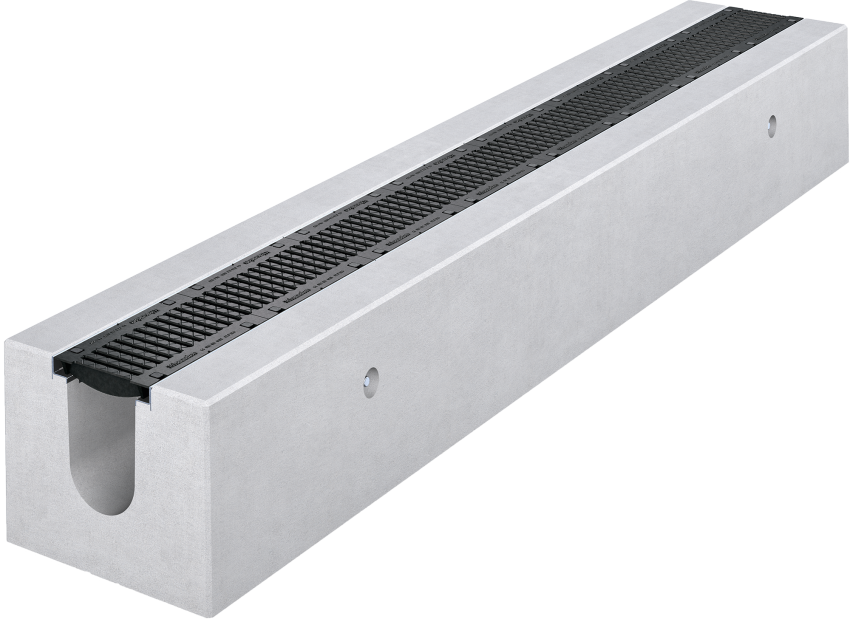

FASERFIX BIG BL drainage | reinforced concrete part

IDEAL FOR: extreme loads in practically all concrete road surfaces, aircraft operating areas, port facilities/container terminals, industrial and logistics areas, heavy-duty traffic areas and lorry parks.
%s


YOUR BENEFITS WITH FASERFIX BIG BL

PREFABRICATED REINFORCED CONCRETE PART TYPE I ACCORDING TO EN 1433

= Cost savings
SHOW DETAILS

PREFABRICATED REINFORCED CONCRETE PART TYPE I ACCORDING TO EN 1433

  • robust, ready-to-use pre-cast reinforced concrete channel body
  • no formwork, reinforcement and in-situ concrete work required
= Cost savings

CHANNEL IN 1 AND 4 M LENGTHS

= Cost savings | Time savings
SHOW DETAILS

CHANNEL IN 1 AND 4 M LENGTHS

  • high laying performance
  • significant time savings when a certain tightness is required due to reduced number of connections
= Cost savings | Time savings


HIGH PERFORMANCE ANGLE HOUSING AND SIDE-LOCK

= Cost savings | Quality assured
SHOW DETAILS

HIGH PERFORMANCE ANGLE HOUSING AND SIDE-LOCK

  • 40 mm x 40 mm angle housing and inlaying grating
  • 16 fixing points for gratings per metre (incl. 8 times with optional bolting)
  • 90 % time savings in fixing the grating with SIDE-LOCK (compared to a conventional fixing)
  • replace and insert the grating without any special tool (if unbolted), a screwdriver is enough
= Cost savings | Quality assured

HIGH STABILITY

= Performance assured
SHOW DETAILS

HIGH STABILITY

  • maximum lateral stability through extra thick walls with static load capacity compared to many competitors‘ products for additional security in extreme situations
= Performance assured

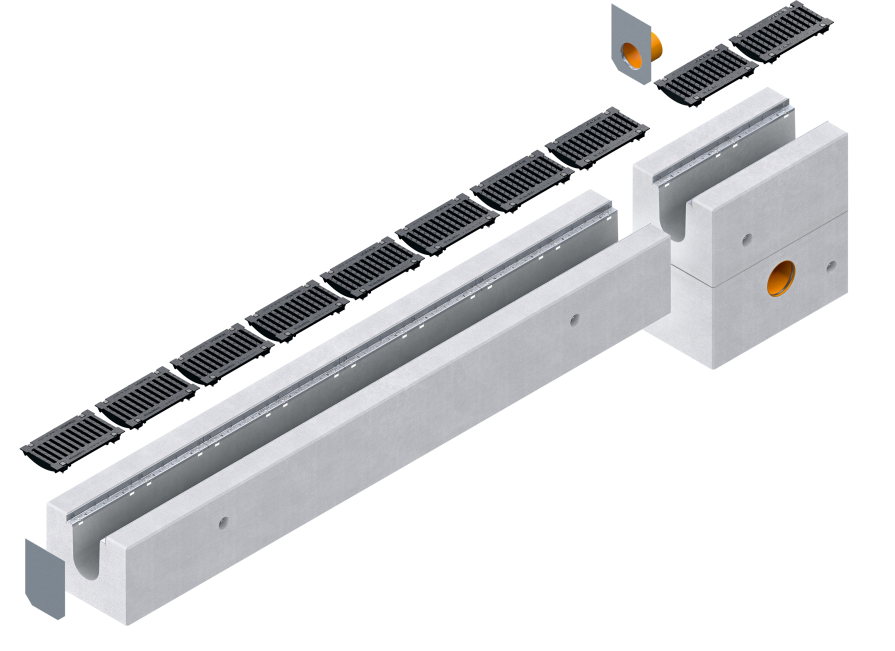

THE SYSTEM IN DETAIL

%s
End cap closed
Channel: prefabricated part made of reinforced concrete C 60/75 with steel angle housings and boltless locking system SIDE-LOCK, length 5 m
Grating made of ductile iron EN-GJS-500-7, SW 20, black, 8-fold bolted and 8-fold SIDE-LOCK per metre
Trash box with PE-HD pipe and galvanised mud bucket
End cap with outlet

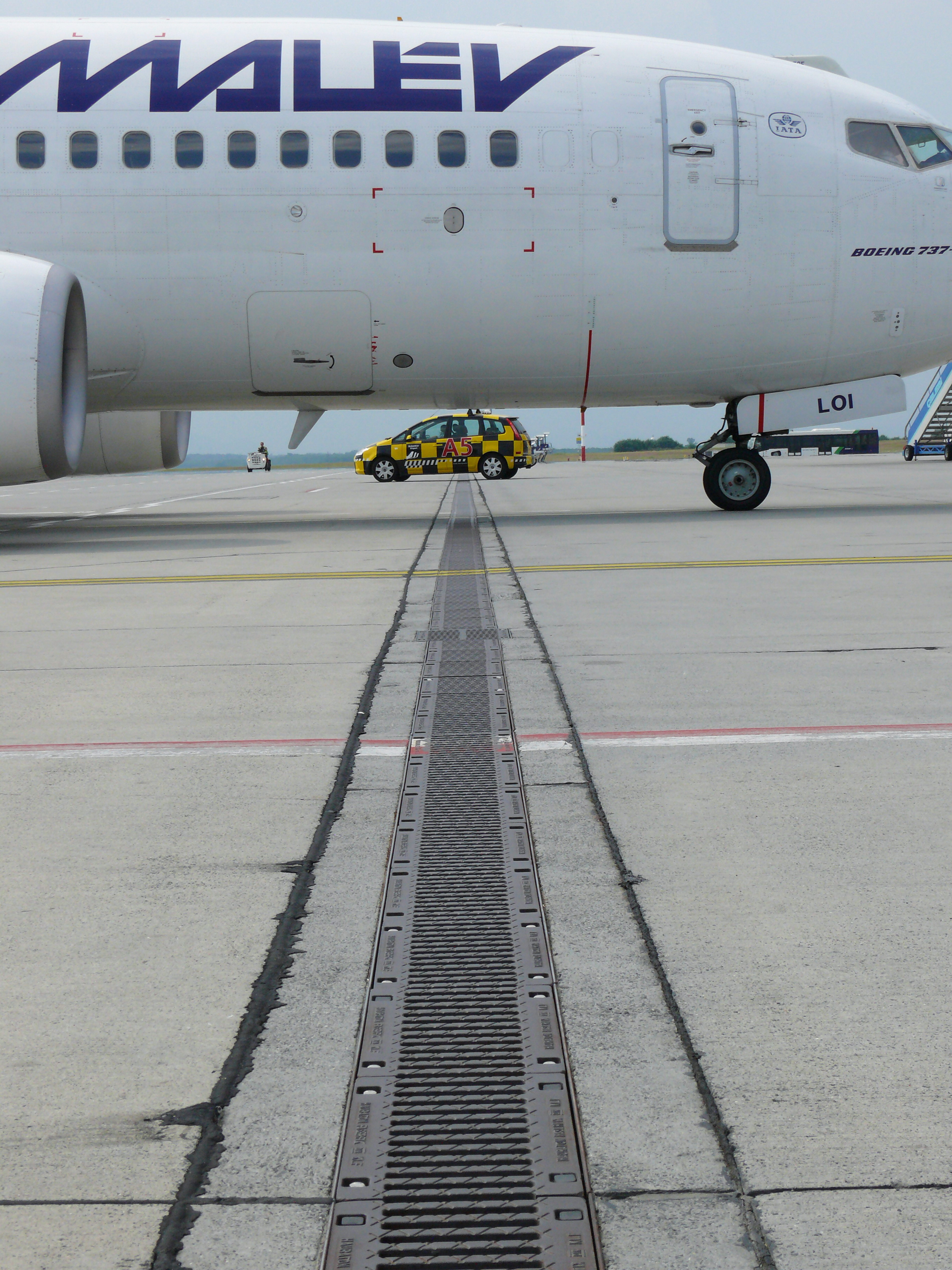

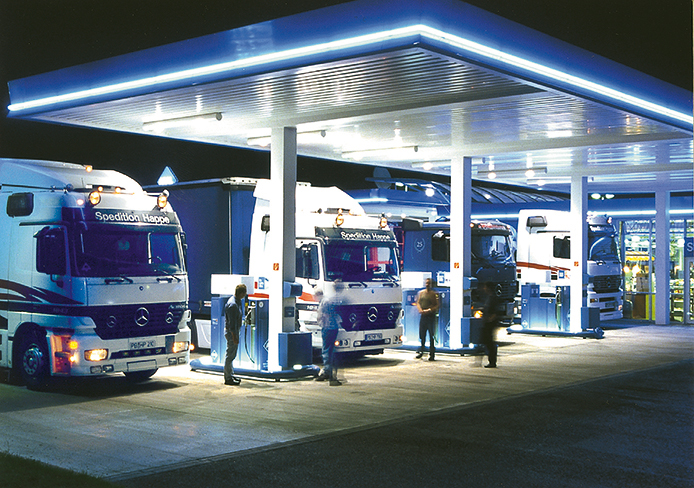

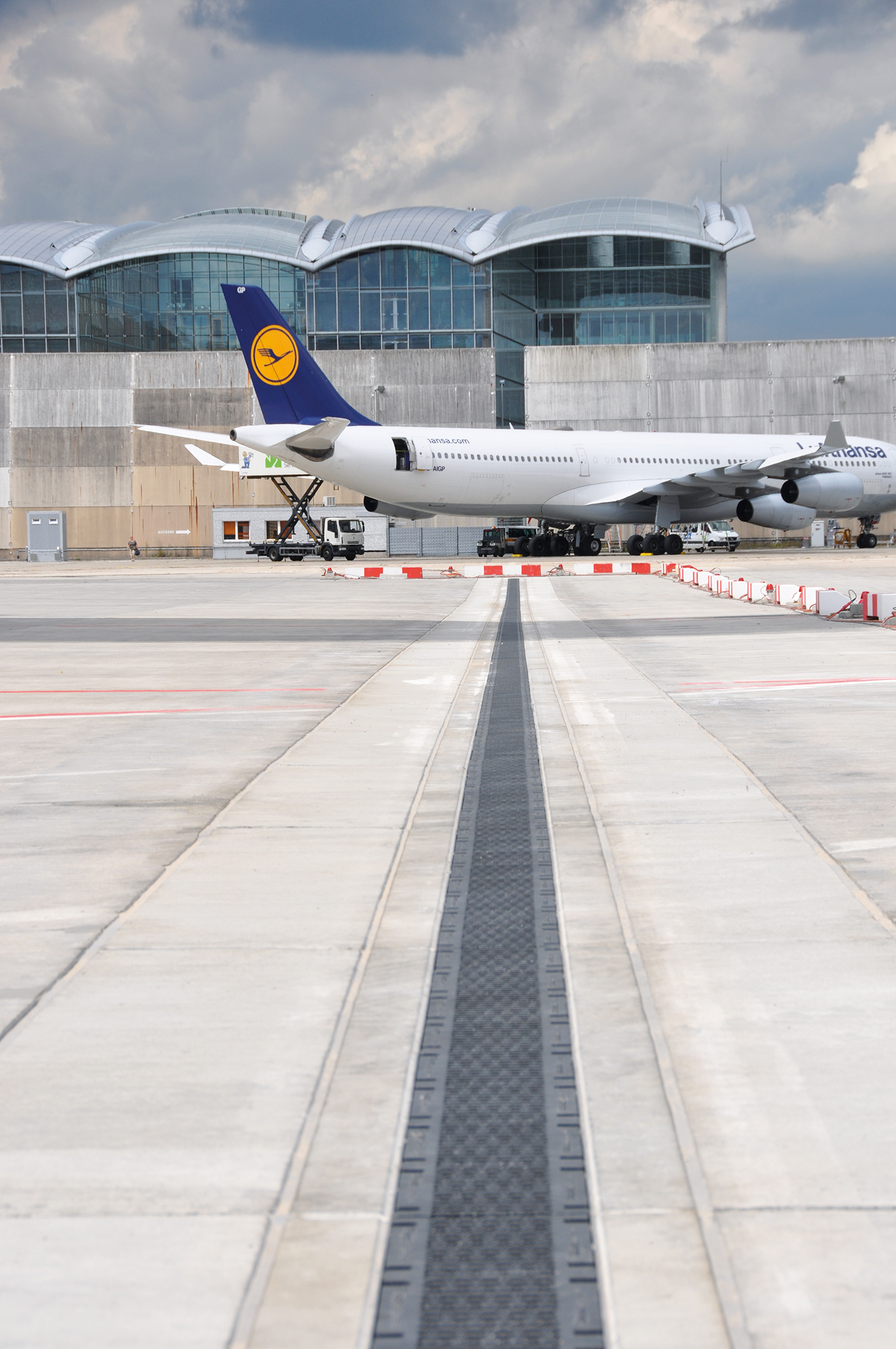

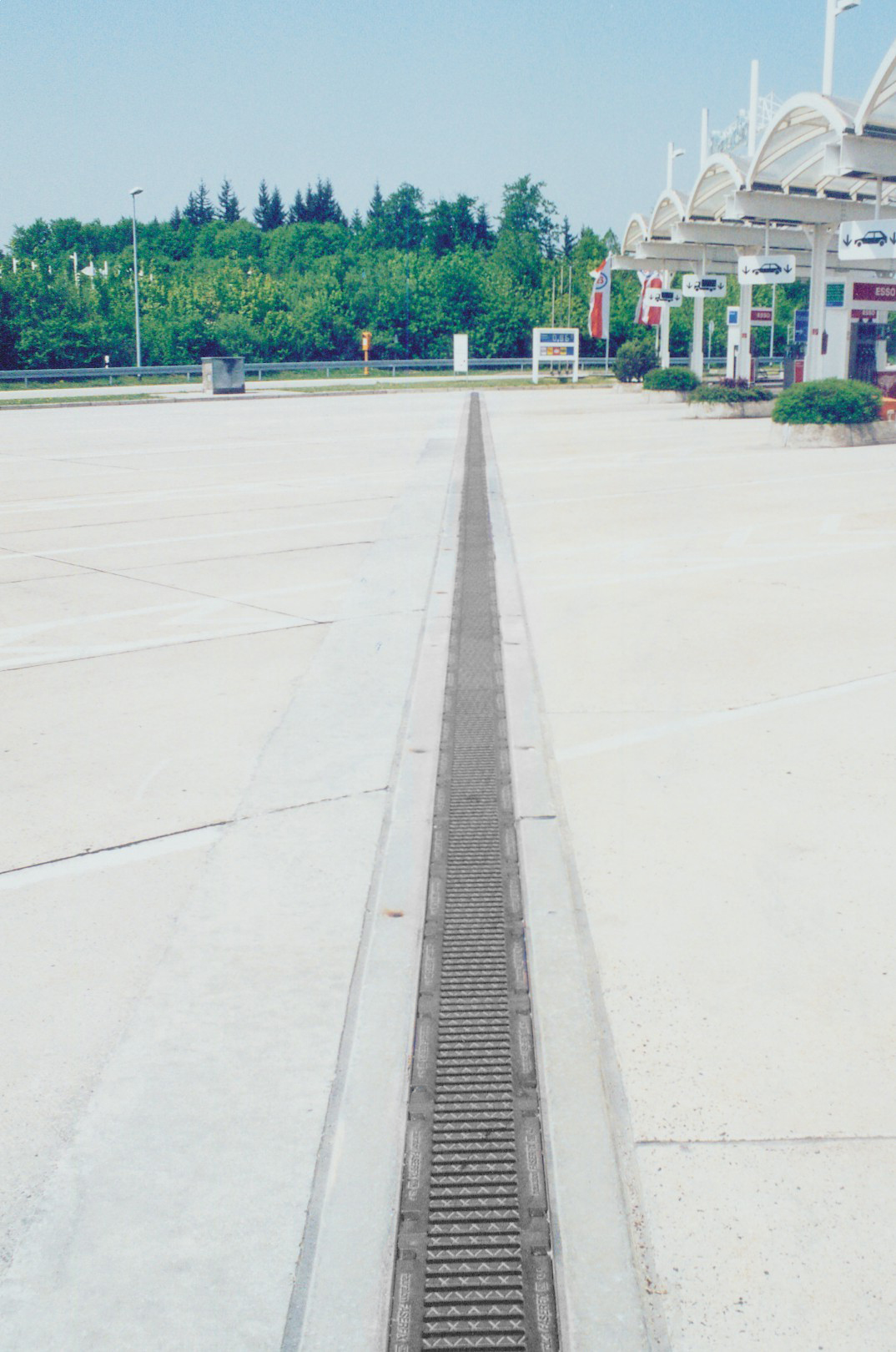

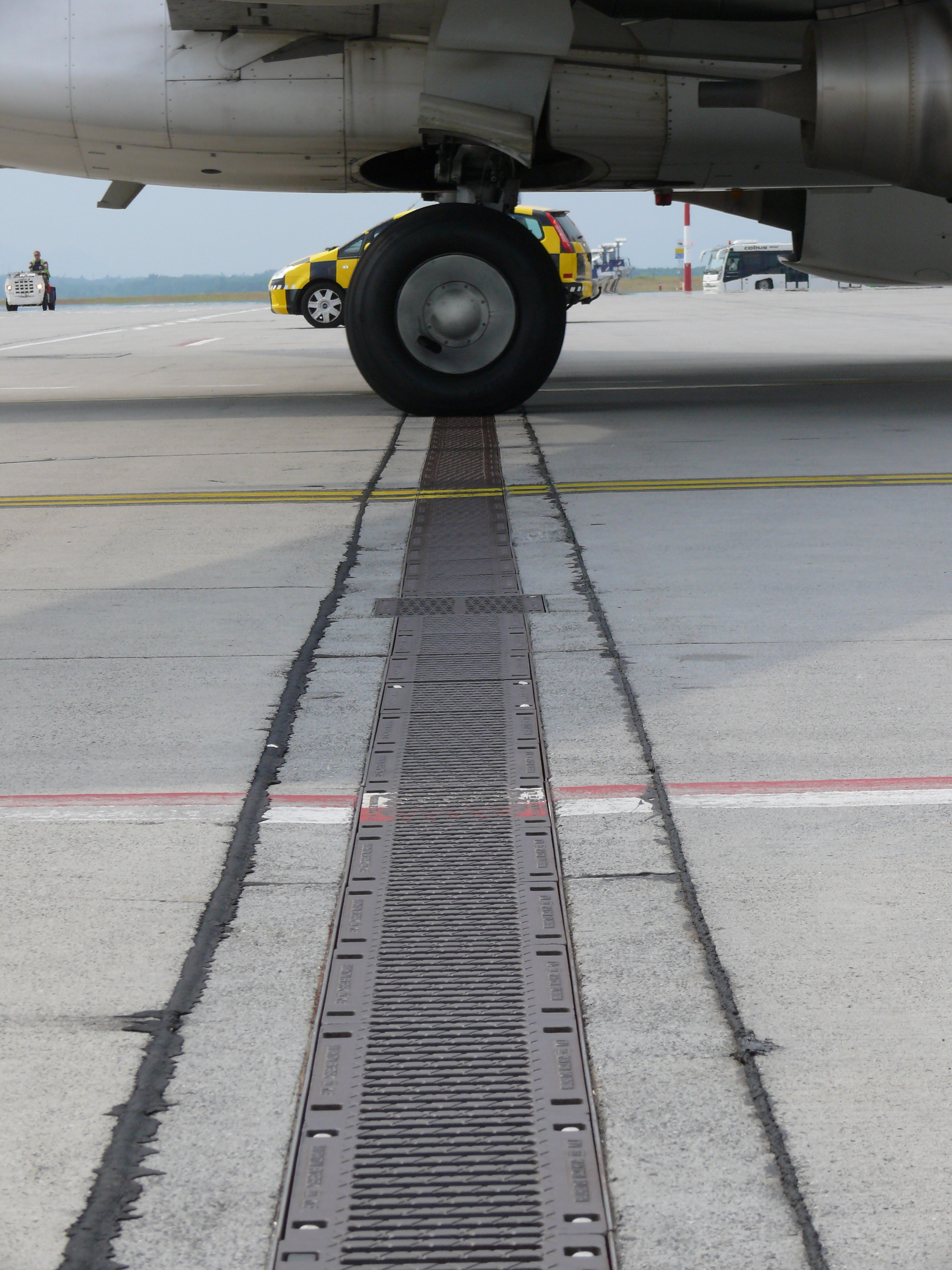

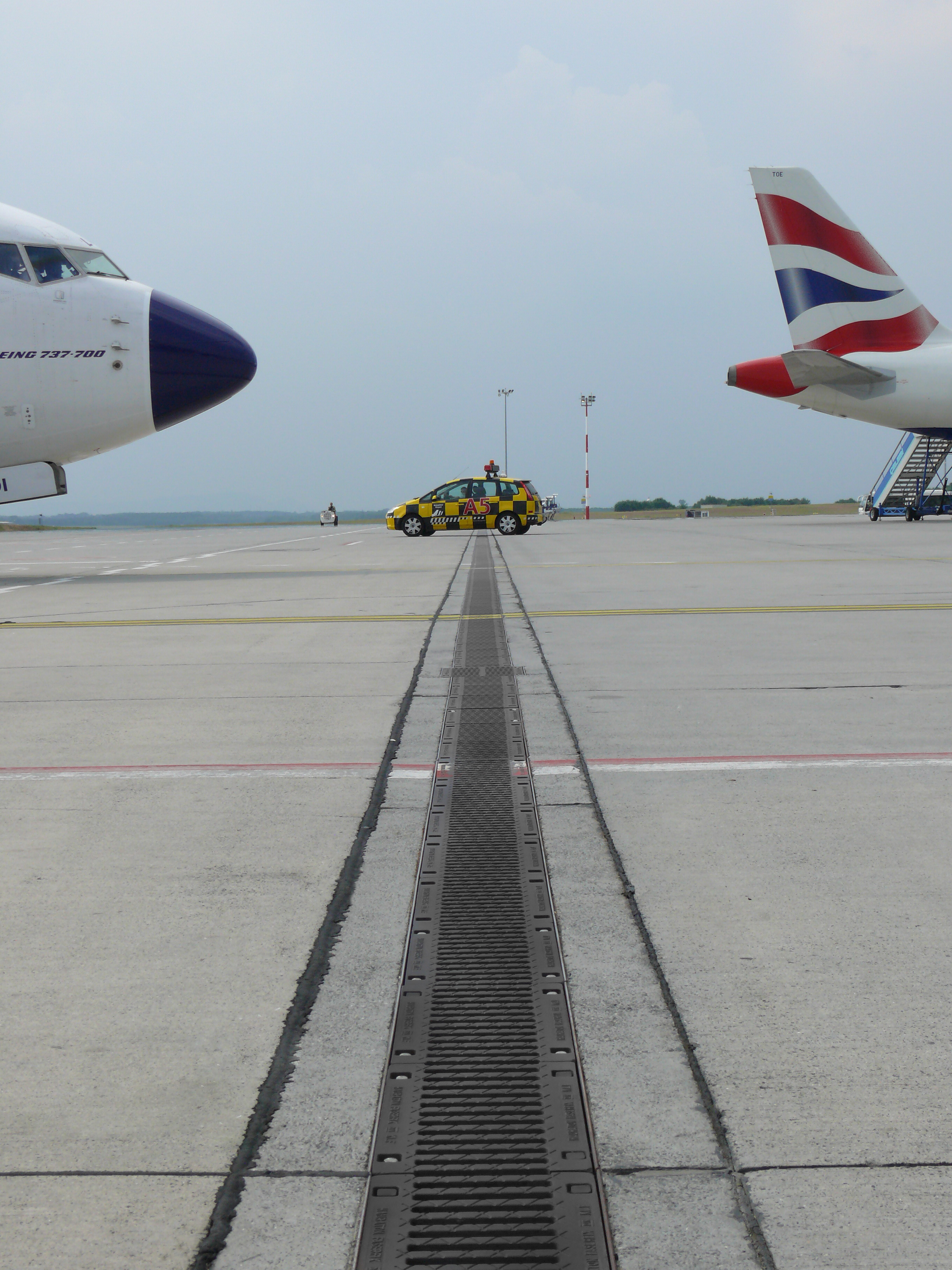

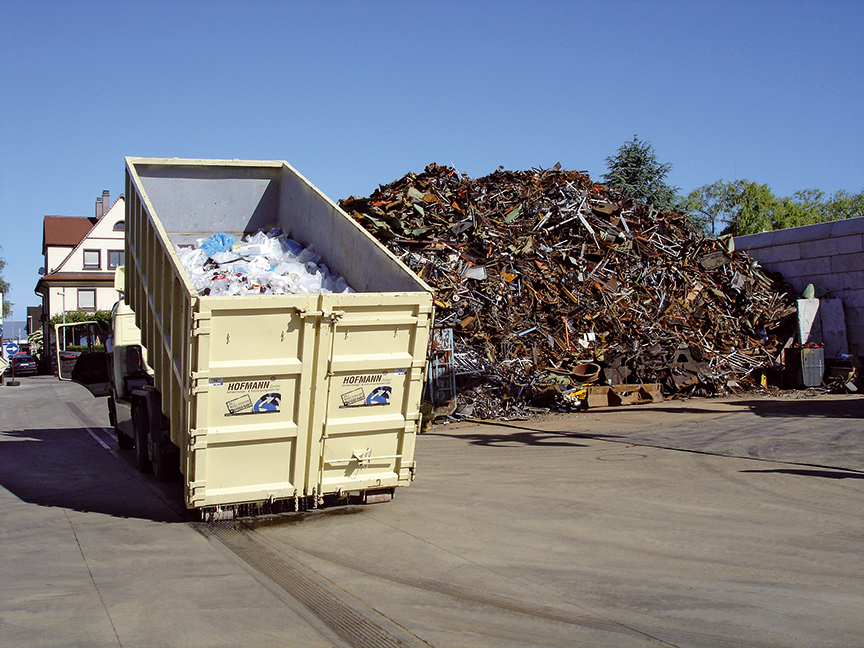

FASERFIX BIG BL Applications
