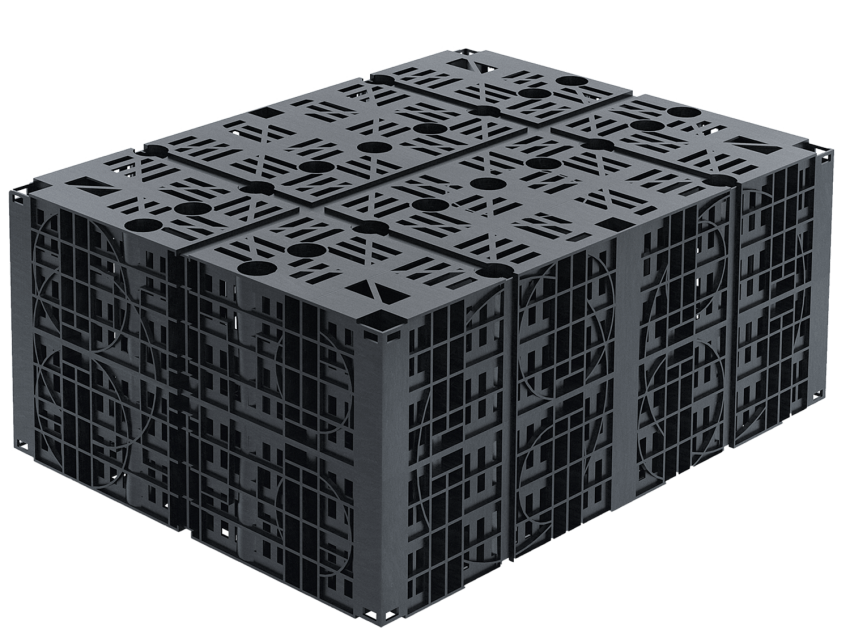

DRAINFIX BLOC infiltration rainwater | trafficked areas

IDEAL FOR: infiltration of rainwater with large volumes and highest loads, especially beneath busy traffic areas such as commercial zones, industrial areas and private properties.
%s


YOUR BENEFITS WITH DRAINFIX BLOC

HIGH LOAD CAPACITY

= Performance assured
SHOW DETAILS

HIGH LOAD CAPACITY

  • can be used in different load capacities according to requirements
  • for lorry traffic in commercial areas
  • up to SLW 60 according to installation type

= Performance assured

UNIQUE CONNECTING TECHNIQUE

= Time savings | Cost savings | Uniqueness
SHOW DETAILS

UNIQUE CONNECTING TECHNIQUE

  • no accessories necessary
  • DRAINFIX BLOC elements are simply connected together
  • stable connection technology in vertical and horizontal directions

= Time savings | Cost savings | Uniqueness

VERY HIGH STORAGE CAPACITY

= Performance assured
SHOW DETAILS

VERY HIGH STORAGE CAPACITY

  • large storage volume: > 90%

= Performance assured


FUNCTIONAL SECURITY WITH GEOTEXTILE

= Performance assured | Longevity
SHOW DETAILS

FUNCTIONAL SECURITY WITH GEOTEXTILE

  • covering of the DRAINFIX CLEAN elements with geotextile
  • geotextile= PP fleece GRK 3
    (weight: 200 g/m2)
  • no infiltration of dirt or soil particles --> guarantee full infiltration performance

= Performance assured | Longevity

COMPLETE SYSTEM SOLUTION

= Performance assured | Quality assured | Uniqueness
SHOW DETAILS

COMPLETE SYSTEM SOLUTION

  • Trench:
    DRAINFIX BLOC Elements
  • Geotextile:
    protects the infiltration trench from fine materials
  • Rainwater treatment plant:
    individually dimensioned plant for filtering of dirt particles
  • Control shaft:
    for inspection, cleaning and maintenance of the infiltration system

= Performance assured | Quality assured | Uniqueness

MINIMAL LAND USAGE

= Cost savings | Uniqueness
SHOW DETAILS

MINIMAL LAND USAGE

  • assembly in several layers possible (depending on the type of soil)
  • e.g.: with SLW 60, 5 or more layers can be formed (depending on soil type and overlap)
  • minimised size of the construction site and land consumption

= Cost savings | Uniqueness


THE SYSTEM IN DETAIL

explo
DRAINFIX®BLOC sedimentation- and filter plant
DRAINFIX®BLOC infiltration ditches
Geotextile
DRAINFIX®BLOC inspection shaft
