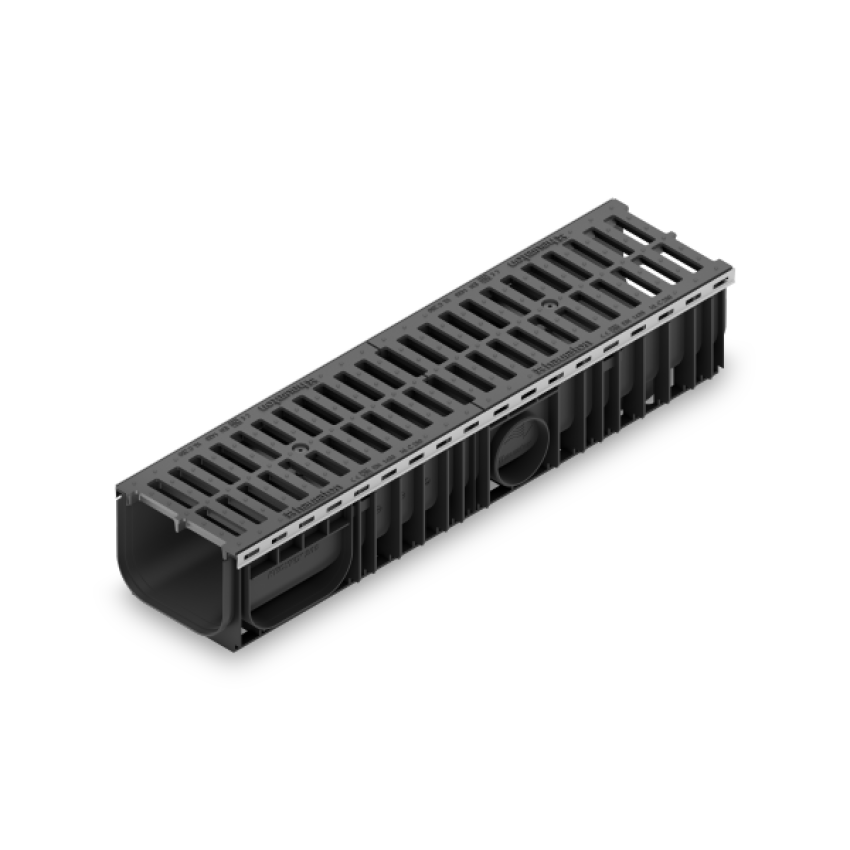

RECYFIX PLUS drainage channel | up to class C 250

IDEAL FOR: applications with higher traffic up to class C 250, such as car parks, industiral estates and sewage plants.
%s


YOUR BENEFITS WITH RECYFIX PLUS

FRAME SYSTEM

= Performance assured
SHOW DETAILS

FRAME SYSTEM

  • integrated galvanised or stainless steel frames
  • protection against longitudinal and lateral movements of gratings
= Performance assured

PRE-ASSEMBLED READY FOR INSTALLATION

= Cost minimisation
SHOW DETAILS

PRE-ASSEMBLED READY FOR INSTALLATION

  • channel and grating = one part
  • no spare parts
  • easy handling in stock and on construction site
  • cost-efficient transport
= Cost minimisation

HIGH RESISTANCE

= Longevity | Quality assured
SHOW DETAILS

HIGH RESISTANCE

  • high resistance against frost, de-icing salt and UV rays
  • withstands high temperature differences
  • for climate ranges from - 50 °C to + 80 °C and more
= Longevity | Quality assured


LOW WEIGHT ENSURES EASY HANDLING ON SITE

= Cost savings
SHOW DETAILS

LOW WEIGHT ENSURES EASY HANDLING ON SITE

  • much lighter than channels made of polymer/resin concrete
  • easy transport and installation
= Cost savings

HIGH-GRADE MATERIAL

= Quality assured | Performance assured
SHOW DETAILS

HIGH-GRADE MATERIAL

  • RECYFIX® - stable and almost unbreakable
  • elastic and especially robust material
  • withstands high loads and temperature differences in daily use
  • 100 % recycled composite body (and also 100 % recyclable) ---> 100% environmentally friendly
  • 0 % water absorption
  • smooth inner surface for superior flow characteristics
  • PP channel body can be cut, drilled and worked easily on site
= Quality assured | Performance assured

HIGH STABILITY

= Performance assured
SHOW DETAILS

HIGH STABILITY

  • proven structural design for superior resistance to dynamic forces and load class C 250
  • various ductile iron gratings in loading classes from class A 15 to C 250 according to EN 1433
  • stable and durable drainage channel with protective edge
= Performance assured

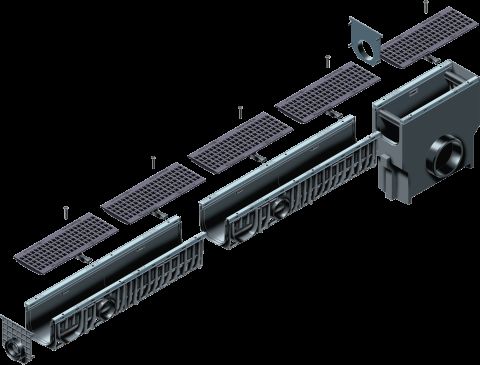

THE SYSTEM IN DETAIL

explo
Channels made of PP with integrated steel frame, according to EN 1433, with groove and tongue connection for exact installation
numerous grating options, for example GUGI-Ductile iron mesh gratings
Trash box with pipe connection possibility
End cap with outlet
End cap without outlet


RECYFIX PLUS Applications
