SERVICE CHANNELS from HAURATON


NEW SERVICE CHANNEL: SAFE. WELL-PROVEN. POWERFULL

Requirements

Ground installed SERVICE CHANNELS have to:

  • ensure a temporary or permanent operation.
  • withstand daily changing requirements under extreme loads.
  • offer a quick, easy and flexible installation.
  •  allow quick access everywhere.
  • make the cable routing invisible.

Solutions

The SERVICE CHANNEL System is a tried-and-tested solution for a variety of applications. It offers:

  • channel systems made of high-quality materials such as fibre reinforced concrete or 100% recycled composite for maximum stability and security.
  • a simple installation with various connection possibilities like T- and corner-connections for cost savings and flexibility.
  • inside cable routing for an attractive overall appearence with a large internal cross-section and optionally available cable-routing system.

Application areas

Exhibition halls
Exhibition halls
Production workshops
Production workshops
Staidums
Staidums

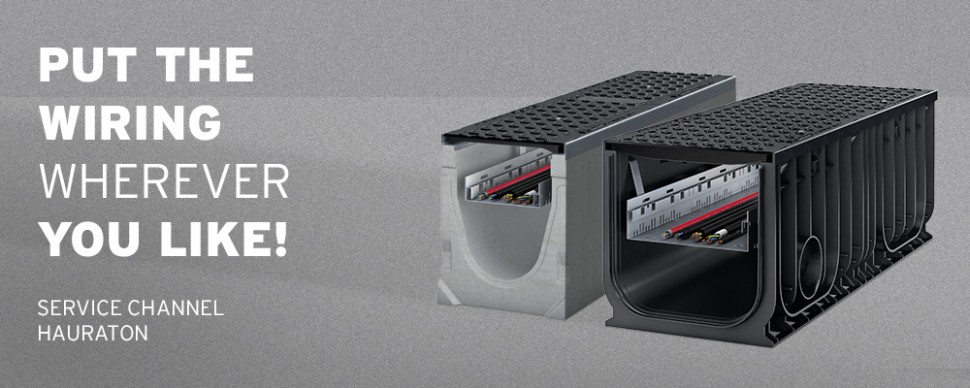

SERVICE CHANNELS SYSTEMS

SERVICE CHANNEL FASERFIX®SUPER

SERVICE CHANNEL FASERFIX®SUPER with galvanised angle housing in 40 mm height.
SERVICE CHANNEL FASERFIX®SUPER with galvanised angle housing in 40 mm height.

Made of fibre-reinforced concrete with 40 mm angle housing, and boltless locking system SIDE-LOCK.

Nominal width:

  • NW 150
  • NW 200
  • NW 300
  • NW 400
  • NW 500

Load class:

  • E 600; extreme load situations and high dynamic forces

SERVICE CHANNEL FASERFIX®KS

SERVICE CHANNEL FASERFIX®KS with galvanised angle housing in 20 mm height.
SERVICE CHANNEL FASERFIX®KS with galvanised angle housing in 20 mm height.

Made of fibre-reinforced concrete with 20 mm angle housing, and boltless locking system SIDE-LOCK.

Nominal width:

  • NW 100
  • NW 150
  • NW 200
  • NW 300

Load class:

  • E 600; extreme load situations
  • C 250; medium load situations with moderate traffic

SERVICE CHANNEL RECYFIX®PRO

SERVICE CHANNEL RECYFIX®PRO with integrated polypropylene angle housing: 20 mm height.
SERVICE CHANNEL RECYFIX®PRO with integrated polypropylene angle housing: 20 mm height.

Made of polypropylene with 20 mm integrated polypropylene angle housing.

Nominal width:

  • NW 200
  • NW 300



Load class:

  • C 250; medium load situations with moderate traffic

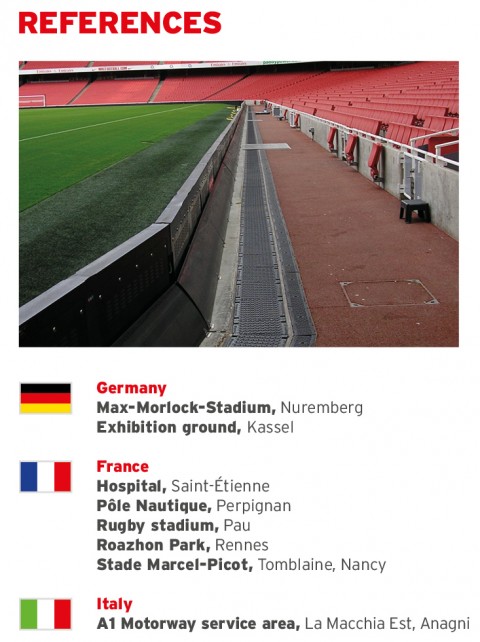

SERVICE CHANNELS SUCCESSFUL IN SERVICE

Referenzen MEDIENRINNEN
Referenzen MEDIENRINNEN



More information ...
